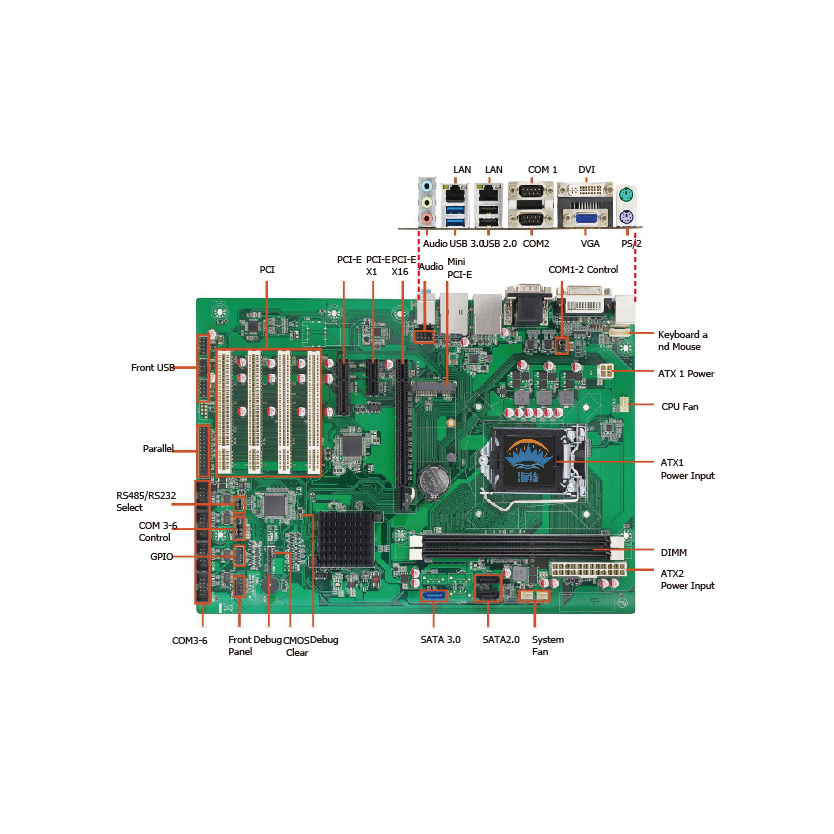

MB-A810 4th Gen Intel? Core ? Processor ATX
發布時間：2025-01-04
瀏覽次數：0
General CPU Intel? 4th Generation Core /Pentium /Celeron CPU ,
LGA1150 , Support MAX CPU TDP 65W芯片組 Intel? H81 內存 2 X DDR3 1333/1600 MHz UDIMM , Up to 16GB 硬盤 2 X SATA 2.0 , 1 X SATA 3.0 , 1 X mSATA 擴展槽 1 X PCIe X16 (PCIe 16X, GEN2)
1 X PCIe X4 (PCIe 4X, GEN2)
1 X PCIe X1 (PCIe 1X, GEN2)
4 X PCIBIOS AMI UEFI BIOS 系統 Windows 7,8,10, Linux I/O 接口 以太網 2 X Intel GBE LAN (10/100/1000 Mbps, RJ45) 串口 2 X RS232 (COM1/2 , Rear IO)
3 X RS232 (COM4/5/6 , Header)
1 X RS232/RS485 (COM3 , Header)USB 2 X USB3.0 (TYPE-A , Rear IO)
2 X USB2.0 (TYPE-A , Rear IO)
6 X USB2.0 (Header)音頻 Realtek ALC662 5.1 Channel HDA Codec ,
Support MIC-IN/LINE-OUTPS/2 2 X PS/2 (Keyboard & Mouse) 并行端口 1 X LPT GPIO 1 X 8-bit GPIO 顯示 顯示界面 1 X VGA , up to 1920x1200@60Hz
1 X DVI , up to 1920x1200@60Hz機械和環境 尺寸 305 X 220mm 電源 ATX（24P+4P） 相對溫度 Operation: 0℃~60℃, Storage: -25℃~75℃ 相對濕度 Operation: 10%~90%, Storage: 5%~95%,
non-condensing
