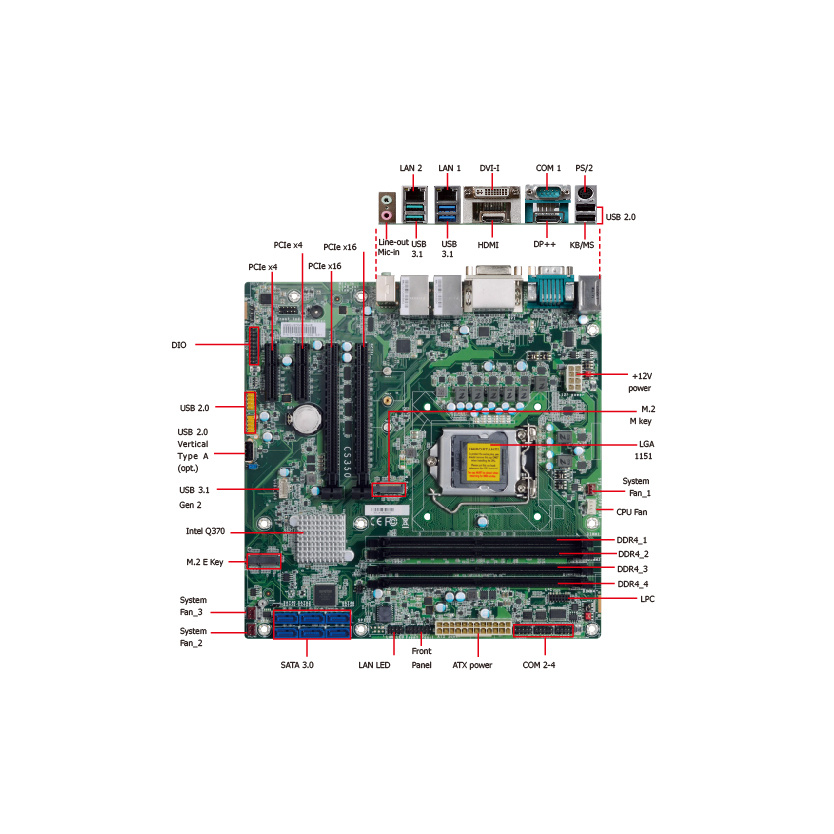

MB-M370 8th/9th Gen Intel? Core ? Processor ATX
發布時間：2025-01-05
瀏覽次數：0
General CPU Intel? 8/9th Generation Core /Pentium /Celeron
CPU , LGA1151 , Support MAX CPU TDP 95W芯片組 Intel? Q370 內存 4 X DDR4 2400/2666 MHz DIMM , Up to 128GB 硬盤 6 X SATA 3.0 , RAID 0/1/5/10 ,
1 X M.2 2242/2260/2280 M key (NVMe)擴展槽 2 X PCIe X16 (PCIe 1 x16X or 2 x8X, GEN3)
2 X PCIe X4 (PCIe 4X, GEN3)
1 x M.2 2230 E key (USB2.0/intel CNVi)BIOS AMI SPI 128Mbit 系統 Windows 10 64-bit , Linux I/O 接口 以太網 2 X Intel GBE LAN (10/100/1000 Mbps, RJ45) 串口 1 X RS232/RS422/RS485 (COM1 , Rear IO)
1 X RS232/RS422/RS485 (COM2 , Header)
2 X RS232 (COM3/4 , Header)USB 2 X USB3.1 Gen 2 (TYPE-A , Rear IO)
2 X USB3.1 Gen 2 (Header)
2 X USB3.1 Gen 1 (TYPE-A , Rear IO)
2 X USB2.0 (TYPE-A , Rear IO)
1 X USB2.0 (TYPE-A)，3 X USB2.0 (Header)音頻 Realtek ALC888 7.1+2 Channel HDA Codec ,
Support MIC-IN/LINE-OUTPS/2 1 X PS/2 (Keyboard & Mouse) 并口 --- GPIO 1 X 8-bit DIO 顯示 顯示界面 1 X DP , up to 4096x2106 @ 60Hz
1 X HDMI , up to 4096x2106 @ 24Hz
1 XDVI , up to 1920x1200 @ 60Hz機械和環境 尺寸 244mm X 244mm 電源 ATX（24P+8P) 溫度 Operating: -5 to 66°C， Storage: -30 to 60°Cwith RTC Battery; -40 to 85°C without RTC Battery 濕度 Operating: 5 to 90% RH Storage: 5 to 90% RH
